China top Jinan PM CNC Quartz Stone Countertop Cut Machine With ATC TMC8-2513

FOB Reference Price:Get Latest Price
$20,000.00 - $30,000.00 / Sets | 1 Set/Sets CNC Quartz Stone Countertop Cut Machine (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Production Capacity:
100%
Power(W):
5.5KW
Type:
Stone Cutting Machine
Certification:
CE ISO
Condition:
New
Use:
Granite
Place of Origin:
Shandong, China (Mainland)
Brand Name:
PMSK
Model Number:
PM-3115
Voltage:
380V/50Hz
Dimension(L*W*H):
1500*3100*500mm
Weight:
5000kg
Name:
CNC Quartz Stone Countertop Cut Machine
Application:
Stone Industrial
Function:
Stone Engraving Carving Cutting
Keyword:
Multi-function
Spindle power:
5.5kw Water Cooling Spindle
Control system:
NC Studio
Usage:
Natural Face Stone Split
Color:
White
Model:
Engraving Router
Product name:
Marble Cutter Machine
Warranty:
18months CNC Quartz Stone Countertop Cut Machine
After-sales Service Provided:
Engineers available to service machinery overseas
Supply Ability
Supply Ability:
100 Set/Sets per Month CNC Quartz Stone Countertop Cut Machine
Packaging & Delivery
Packaging Details
wooden case CNC Quartz Stone Countertop Cut Machine
Port
Qingdao CNC Quartz Stone Countertop Cut Machine
Lead Time :
shipped in 45 days
Product Description

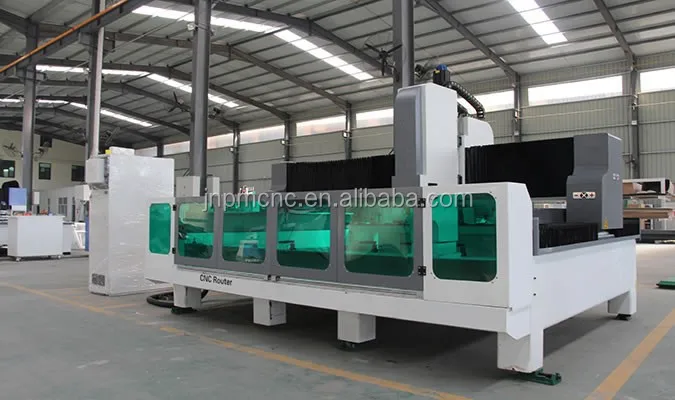

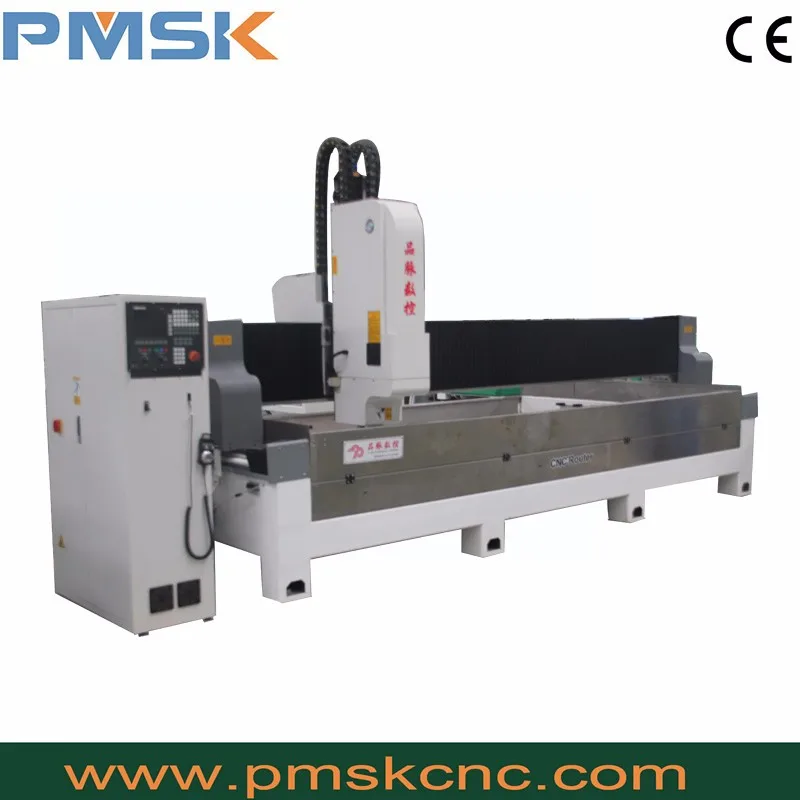

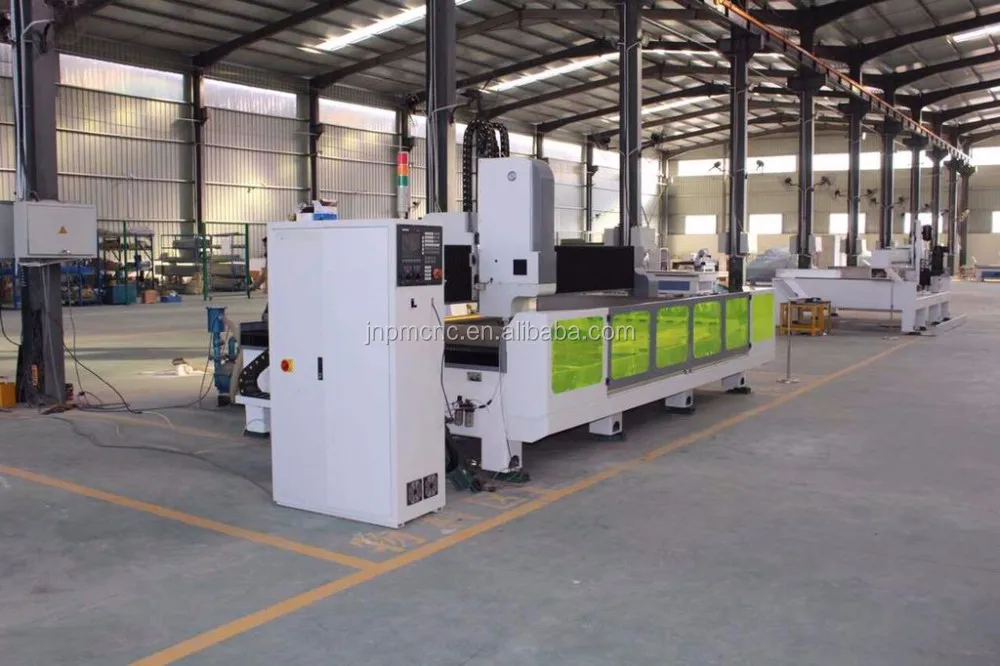

                                  Quartz stone countertops processing center

Machine Introduction:

Quartz stone countertops processing center is mainly used for stone material countertops and stone reliefs processing and basin drilling.

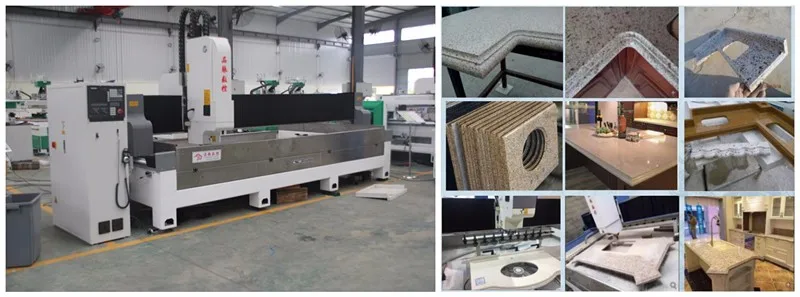

Suitable for artificial stone countertops, quartz stone countertops, washbasins, tea tray carving and European style edging, and other special shaped stone, ceramics, glass, microlite cutting,drilling, sanding, edging, edging, polishing and carving..

CNC Quartz Stone Countertop Cut Machine

Technical parameter

SPECIFICATIONS FOR PM3115
Model No
Quartz processing center
X,Y,Z working area
1500*1300*500mm
2800*1000*500mm
3100*1500*500 mm
Lathe Bed
Thick steel weld
Table
Steel board+Aluminum board
XYZ Guide Rail
30mm Taiwan Square Rail
X Y Transmission
Imported Rack Gears
Z Transmission
Imported Ball Screw
Spindle
5.5kw Servo Customized Spindle
Way of fixing Workpiece
Scuction Cup
Tools manager
12 liner tool magazines
Motor
Servo motor
Drive
 Servo driver
vacuum pump
 7.5kw water-cooling
Control system
NC-studio (NK) control system
Command languages
G code
Software
compatability Origin UCANCAM software
Working voltage
AC380V/3phase,50HZ
Weight
 4800Kg

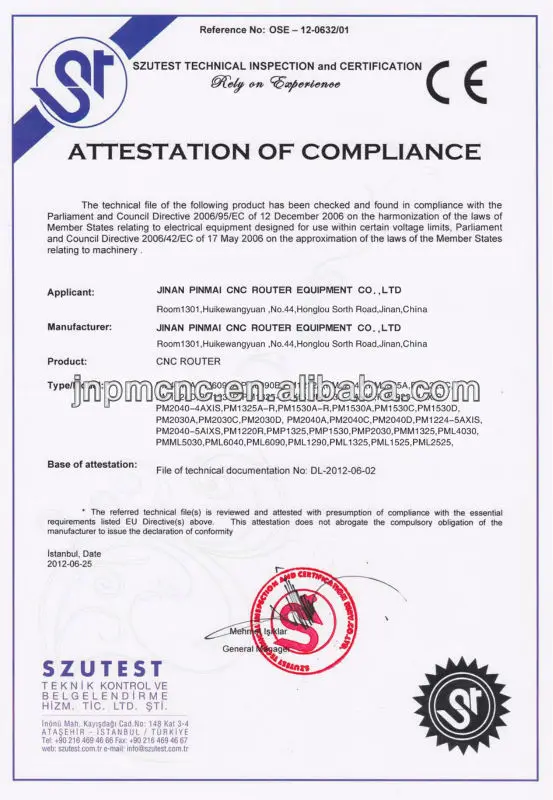

Certifications
Detailed Images

CNC Quartz Stone Countertop Cut Machine

Machine Parts

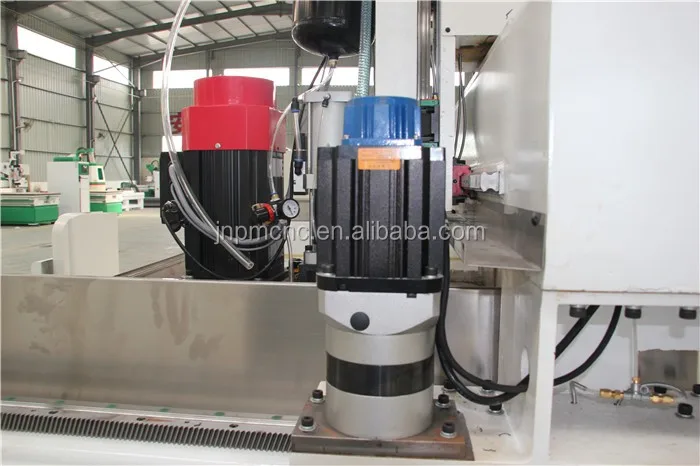

Name: servo motor

Brand: China brand

Original: China

Domestic famous motor, strong driving force, low fuel consumption, high economic benefits

CNC Quartz Stone Countertop Cut Machine

Main Features

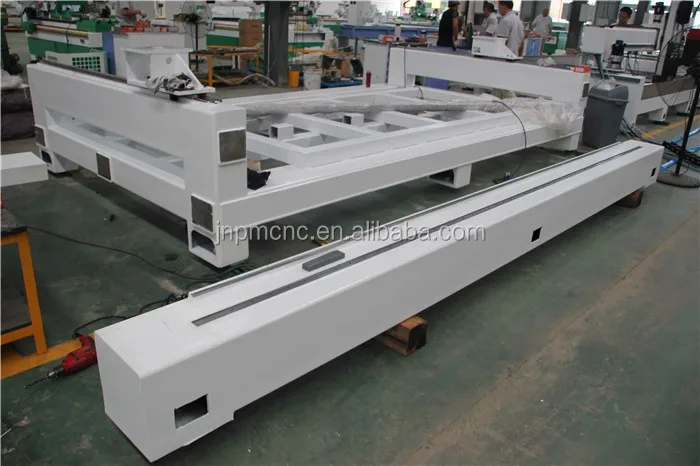

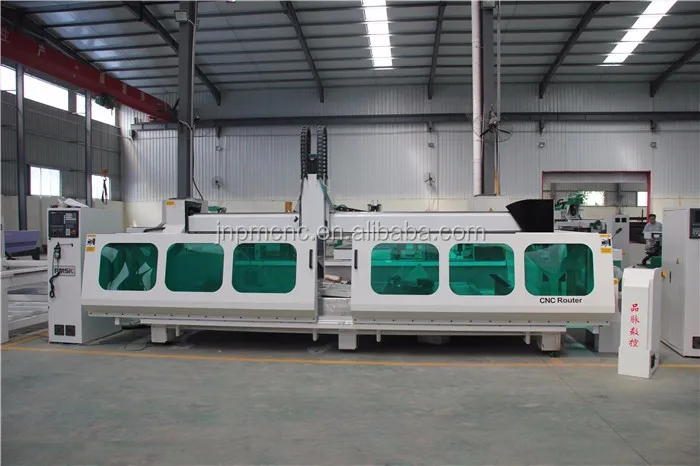

Name: Machine body
weight: 4500kg
The overall machien body manufacturing through a large processing center, to avoid manual error, to ensure the accuracy of the machine

CNC Quartz Stone Countertop Cut Machine

Machine Parts

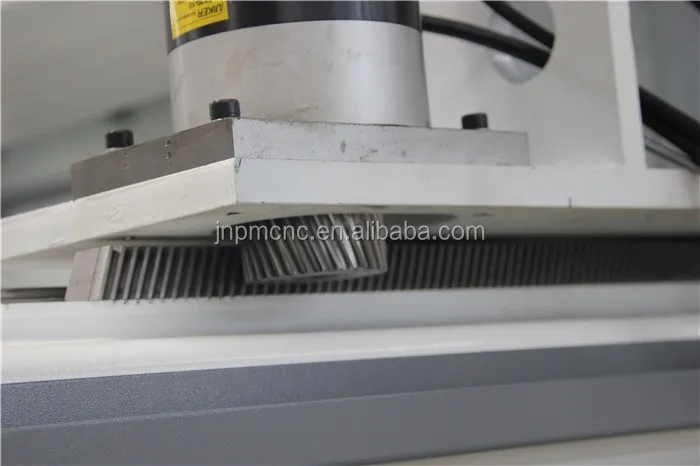

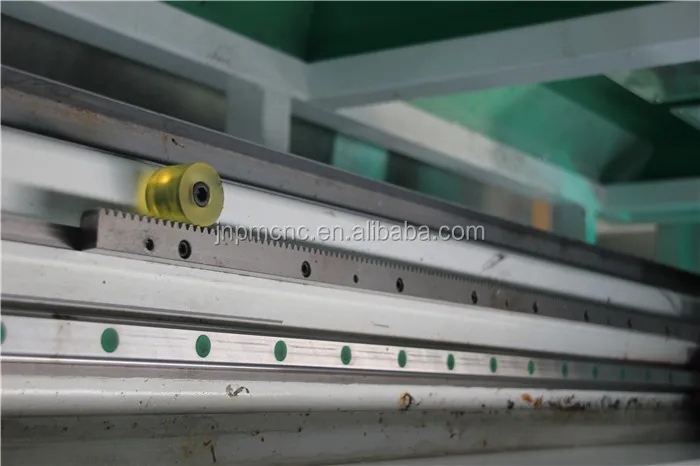

Name: gear rack
Brand: Import from Germany
Original: Germany
The gear ensure the accuracy of the machine

CNC Quartz Stone Countertop Cut Machine

Features

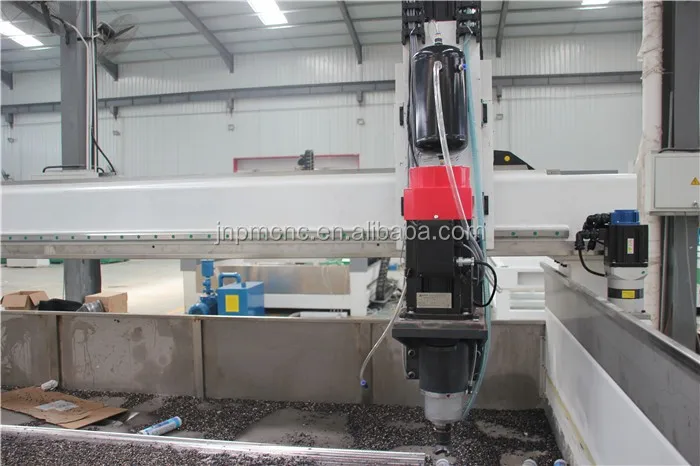

Name: Spindle
Brand: Water cooling
Power: 5.5kw
According to the nature of quartz stone and other materials, special processing spindle

CNC Quartz Stone Countertop Cut Machine

Machine parts.

Name: square rail

Brand: Hiwin

Original: Taiwan

The H20 square rail ensure the accuracy of the machine.

CNC Quartz Stone Countertop Cut Machine

Machine parts.

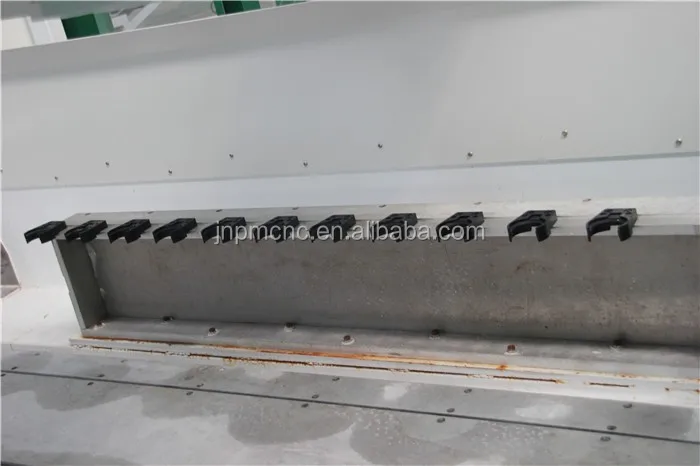

Mane :Tool manager

Auto tool changer

Saving the tool change time, improve processing efficiency

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Packing & Delivery
Packaging
Size
3100 (L) * 1500 (W) * 789 (D)
Weight
4 T



Packaging Details
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
Packaging
Size
3100(L) * 1500 (W) * 789 (D)
Weight
4T



Packaging Details
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.

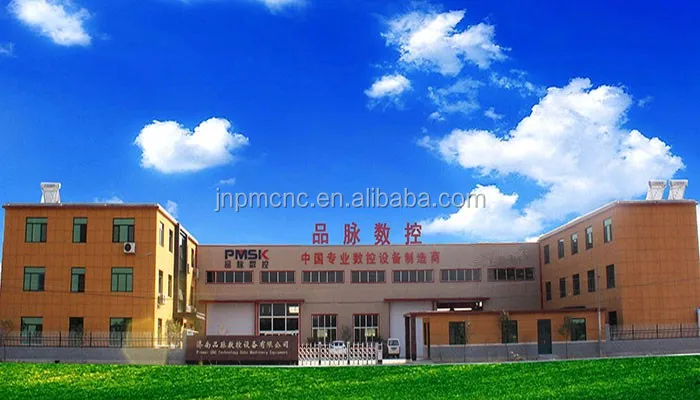

Our factory
