PM-R1325 4 axis woodworking CNC router

FOB Reference Price:Get Latest Price
$5,000.00 - $9,000.00 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Condition:
New
CNC or Not:
CNC
Place of Origin:
Shandong, China
Brand Name:
PINMAI
Model Number:
PM-R1325
Voltage:
220V/380V
Dimension(L*W*H):
3300*1880*1920mm
Certification:
CE
Product name:
PM-R1325 4 axis woodworking cnc router
Certificate:
CE BV
Control:
DSP/Taiwan SYTEC
Software:
Ucancam,Artcam
Spindle:
Water-cooling /Italy HSD air-cooling
Working mode:
CNC
Working funtion:
Engraving,cutting
Application:
Working,advertising
Table:
Vaccum absorption
OEM:
Available
After-sales Service Provided:
Engineers available to service machinery overseas
Power(W):
6.5kw
Weight:
1200kg
Warranty:
one year
Supply Ability
Supply Ability:
80 Set/Sets per Month
Packaging & Delivery
Packaging Details
standard fumigation-free wooden box
Port
Qingdao,Tianjin,Shanhai
Lead Time :
10working days
PM-R1325 4 axis woodworking CNC router

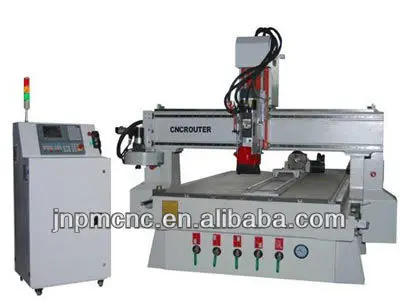

PM-R1325 axis woodworking CNC router picture



PM-R1325 axis woodworking CNC router  APPLICATION:

1,Woodworking industry:

Three dimensional wave plate processing,cupboard doors,wooden doors,window processing,vedio game cabinets and panels,computer table and furniture auxiliary processing.

2,Advertising industry:

Advertising signs,logo production,acrylic,plastic cutting,production of decorative materials,forming system module,etc.


PM-R1325 axis woodworking CNC router Features:

1. Upgraded spindle
   We adopt spindle with the power range from 4 to 12 horsepower,which is with higher precision bearings and DC brushless motors. Spindle is the crucial part of CNC router, higher quality spindle could bring you more benefit since it can save your time and increase your productivity. Both HSD and Colombo spindles are available.
2. Dust collection System
   NICECUT values working environment protection when offering CNC router. It can eliminate the airborne dust completely. Double cloth bag with 3kw motor can assist your job perfectly!
3. Vacuum hold down system
   Often losing precision because of material movement in the production? We offer vacuum hold down system for you to solve such problems. There are different power and price level pumps for matching your needs!
4. 4th Axis Rotary
   This device usually used in furniture, art and craft industry, processing material are wood, jade, metal etc. Diameter is 7-20cm, length is optional.



PM-R1325 axis woodworking CNC router Specifications:

NO.

Discription

Parameter

1

X,Y,Z Working Area

1300x2500x200mm

2

Table Size

1440×3040mm

3

X,Y,Z Traveling Positioning Accuracy

±0.03/300mm

4

X,Y,Z Repositioning Positioning Accuracy

±0.05mm

5

Lathe Structure

Welded Strucutre

6

X, Y Structure

Gear Wheel Transmission, Shaft Linear Bearings

7

Z Structure

Ball Screw, Shaft Linear Bearings

8

Max.Consume power

6.5Kw

9

Max.Speed

0-32000mm/min

10

Max.Working Speed

0-20000mm/min

11

Spindle Power Motor

3.0KW water cooling Spindle

12

Spindle Speed

0-18000RPM

13

Working Mode

Stepper

14

Working Voltage

AC380V,3PH/50/60Hz,3PH

15

Command

G Code, *uoo, *mmg, *plt

16

Operating System

DSP System (NC Studio control system option)

17

Interface

USB

18

Flash Memory

128M

19

Collet

ER25

20

X,Y Working Delicacy

<0.01mm

21

Software

Ucancam /Artcam software

22

Running Circumstance

Temperature: 0°C~45°C
Relative humidity: 30%~75%

23

Packing Size

Seperated: 3200X1950X1404mm
Integrated: 3200X1950X1950mm

24

Net Weight

900KG

25

Gross Weight

1150KG

All parameters above subject to change without prior notice



Can you help me to Choice a Better CNC Router? Thanks.

1.     Choice a suitable working area

Small size such as 600*900mm or 1200*1200mm is mainly used for advertising; big working size 1200X2400mm,1300X2500mm,etc are mainly used for woodworking.

2.     Choice a suitable spindle motor.

Spindle motor is the important components for cnc router,the performance of cnc router put an important role in cnc router. Different spindle power depends on your processing materials,working thickness,etc specific usage.





PM-R1325 axis woodworking CNC router SAMPLE PHOTOS
